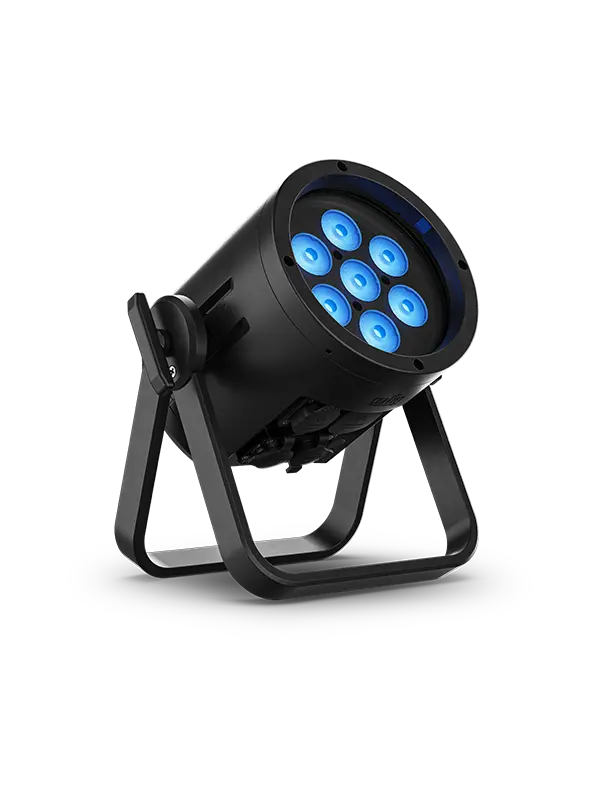

Chauvet Well Pod 2

Chauvet Well Pod 2

https://odoo.showtools.com.au/web/image/product.template/1839/image_1920?unique=1eed320
WELL POD 2 is a compact addition to any rental package, delivering great output, fantastic color rendering, and the flexibility of a PAR fixture design with a removable split yoke ideal for both truss and floor mounting. Up to 18 hours of battery life from a wash light engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability.

$ 15,050.00 15050.0 AUD $ 15,050.00 Tax Included

$ 15,050.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • A fully realized kit of (6) battery operated black IP65-rated par style fixtures with (7) RGB warm white LEDs, and a beam angle of 12.8 degrees
  • Charging case designed to charge with the lid closed to save warehouse space
  • Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
  • Built-in battery charger allows fixture to operate while charging
  • Built-in IP65 5-pin DMX in/out allows for wired data
  • Built in Seetronic IP65 PowerKon input/output
  • Control over DMX, CRMX, RDM, or RF
  • Easy connection to WELL CONNECT box and ConnectFX for app control
  • USB-C port for convenient software updates
  • Removable split yoke for both hanging and floor standing
  • Pressure equalizing M6 Gore valve
  • Built-in safety cable attachment point
  • Easy-to-read OLED display
  • Built-in theft alarm (audio and visual notification)
  • Built-in PWM adjustment
  • Included RF remote
  • Included 6 pack charging case

Optical

  • Light Source: 7 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 6500 K
  • Beam Angle: 11.5°
  • Field Angle: 21.6°
  • Cutoff Angle: 36.9°
  • Lumens: 1797 lm (AC power)
  • Illuminance: lux 1089 @ 5 m (AC power)
  • Lumens: 718 lm (OFF battery setting)
  • Illuminance: 436 lux @ 5 m (OFF battery setting)
  • Lumens: 834 lm (5-hour battery setting)
  • Illuminance: 507 lux @ 5 m (5-hour battery setting)
  • Lumens: 528 lm (8-hour battery setting)
  • Illuminance: 319 lux @ 5 m (8-hour battery setting)
  • Lumens: 335 lm (12-hour battery setting)
  • Illuminance: 202 lux @ 5 m (12-hour battery setting)
  • Lumens: 214 lm (18-hour battery setting)
  • Illuminance: 129 lux @ 5 m (18-hour battery setting)
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz



Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 1 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No



Construction / Physical

  • Dimensions: 8.11 x 5.31 x 8.76 in (206 x 138 x 222.5 mm)
  • Dimensions (w/o bracket): 5.43 x 5.43 x 5.67 in (138 x 138 x 144 mm)
  • Dimensions case: 32.7 x 19.3 x 15.4 in (832 x 492 x 390mm)
  • Weight: 7.2 lb (3.3 kg)
  • Weight (shipping weight): 113.8 lb (51.6 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast



Connections

  • Power Connection: Edison (local) plug to Seetronic PowerKon IP65
  • Power Input (fixture and charging case): Seetronic PowerKon IP65
  • Power Output (fixture and charging case): Seetronic PowerKon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: USB-C

Control

  • Control Protocol: RDM, CRMX, NFC, RF
  • DMX Channels: 5, 8, or 12
  • Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
  • Wireless WDMX “G” Compatibility: G4S
  • Wireless Lumen Radio Compatibility: CRMX



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Single unit
    • Power Linking: 34 units @ 120 V; 52 units @ 208 V; 54 units @ 230 V
    • Power and Current: 43 W, .35 A @ 120 V, 60 Hz
    • Power and Current: 47 W, .23 A @ 208 V, 60 Hz
    • Power and Current: 45 W, .22 A @ 230 V, 50 Hz
  • 6 Pack case
    • Power Linking: 4 units @ 120 V; 6 units @ 208 V; 6 units @ 230 V
    • Power and Current: 191 W, 2.75 A @ 120 V, 60 Hz
    • Power and Current: 185 W, 1.96 A @ 208 V, 60 Hz
    • Power and Current: 183 W, 1.76 A @ 230 V, 50 Hz



Battery

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 8 hours
  • Battery Life: 12 hours
  • Battery Power: 25.9 V, 2.5 Ah



Certifications / Qualifications

  • CE, UKCA, FCC, ROHS
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)



What's Included

  • (6) WELL POD 2
  • (1) 6 slot charging case
  • (6) detachable split yokes
  • (1) RF controller
  • (1) QRG



Optional Accessories
